Practical Dataloading with Strawberry GraphQL and Aioinject — Aryan Iyappan

This blog post tackles the N+1 query problem in GraphQL by introducing dataloaders for batching requests and reducing database calls. It walks through setting up Aioinject, an async dependency injection library, to manage dataloader lifecycle efficiently with FastAPI and Strawberry GraphQL. The post explores three iterations of dataloader implementation, showing how to eliminate global state, improve performance, and support advanced features like key transformations and reusable factories.

Mar 25, 2025 · 16 min read

Tags: strawberry-graphql, fastapi, backend, python, graphql

Dataloaders are a necessary abstraction for efficient data fetching in GraphQL. This blog post explores how to practically implement data loading in Python, alongside integration with Aioinject, an async Python dependency injection library.

The N+1 Problem

GraphQL provides immense data loading capabilities to clients. But with great power, comes great responsibilities. It is easy to define queries like the one below, which can impact database performance if the resolvers under the hood are implemented naively.

Assuming the following GraphQL schema:

 type Job {
   id: ID!
   title: String!
   description: String!
 }

 type Organization {
   id: ID!
   name: String!
   jobs: [Job]
 }

 type Query {
   organizations: [Organization]
 }

We can query the schema like:

query OrganizationsQuery {
  organizations {
    id,
    name,
    jobs {
      title
      description
    }
  }
}

A naive resolver implementation will fetch the the jobs separately from the database on each organization returned, for the query. Let’s say it finds N organizations in the database. For each organization found, the jobs() resolver will be invoked to locate all the jobs associated with that organization. This resolver will trigger a database call for each organization, which will be N calls. This means that in total, there will be N+1 database calls occurring.

This is not very efficient and won’t scale after a point.

Dataloaders to the rescue

Here's where dataloaders come to save the day! Dataloaders can batch similar client GraphQL requests into a single query. Basically, consider them as an intermediate layer that converts multiple similar requests to a single batched request. Its main tasks are:

How It Works Step-by-Step

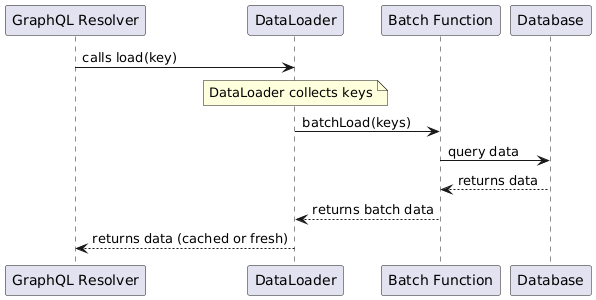

Sequence diagram: a GraphQL resolver calls load(key), the DataLoader collects keys and calls the batch function once, which queries the database and returns the batch data to the resolver

  1. Request Collection: When a GraphQL resolver requests data (for example, album information), it calls the DataLoader’s load(key) function. The DataLoader collects these requests for the current event loop tick.

  2. Batching and Execution: At the end of the tick, the DataLoader calls a single batch function (often named batchLoad) with all the collected keys. This function fetches all the requested data in one go, such as via a single database query.

  3. Caching Results: Once the batch function returns the data, the DataLoader caches the results. Any subsequent request for the same key within the same cycle will retrieve the data from the cache, avoiding redundant work.

  4. Resolver Return: Finally, the GraphQL resolver receives the data from the DataLoader (either directly from the cache or from the fresh batch) and returns it to the client.

You can read more on dataloaders here.

Initializing dataloaders

We need to share the dataloaders across all resolvers for a single request, so that the data can be batch-loaded and cached in the context of a single request.

Ideally, dataloaders will be initialized once per GraphQL request context. This can be done by defining the dataloaders as an attribute on the Context class in Strawberry GraphQL, or by utilizing a dependency injection library that caches the dataloaders for the scope of a single GraphQL request.

You can read more on this here.

A naive attempt at data loading

Let us implement a simple data loader, using a pseudo session instance to query an imaginary database, without any dependency injection first.

from typing import List

from strawberry.dataloader import DataLoader
import strawberry

from app.database import session

@strawberry.type
class User:
    id: strawberry.ID


async def load_users_by_id(keys) -> List[User]:
    async with session() as session:
        users = await session.find_many(ids=keys)

    users_by_id = {
        user.id: user for user in users
    }
    return [users_by_id.get(key) for key in keys]


loader = DataLoader(load_fn=load_users_by_id)

We can use this dataloader in a resolver like this:

import strawberry
from app.dataloaders import loader


@strawberry.type
class Query:
    @strawberry.field
    async def get_user(self, id: strawberry.ID) -> User:
        return await loader.load(id)


schema = strawberry.Schema(query=Query)

This is a very simple implementation, but has a few drawbacks:

Integrating data loading with Aioinject

Let's integrate Aioinject to manage dependencies alongside our dataloaders.

Setup Guide

pip install -U aioinject
import aioinject

container = aioinject.Container()

Iteration 1- Directly injecting into the load function

Let us declare our dataloader load function, assuming that we have an account repository named AccountRepo that handles the data fetching for us. Let us also assume that the AccountRepo has been registered as a dependency in the container, with the appropriate scope.

Internally, the AccountRepo can use any kind of abstraction (like sessions) to access the database- which is out of the scope of this tutorial.

from typing import Annotated

from aioinject import Inject
from aioinject.ext.strawberry import inject

from app.repositories import AccountRepo

@inject
async def load_account_by_id(
    account_ids: list[str],
    account_repo: Annotated[AccountRepo, Inject],
) -> list[Account | None]:
    """Load multiple accounts by their IDs."""
    id_to_account_map = {
        account.id: account
        for account in await account_repo.get_many_by_ids(account_ids)
    }
    return [id_to_account_map.get(account_id) for account_id in account_ids]

Here, we are decorating the load function with the @inject decorator, and directly passing in dependencies as arguments.

Next, we need to create a custom context class to place the dataloader in.

from typing import TypedDict

from fastapi import BackgroundTasks, Request, Response
from strawberry.dataloader import DataLoader
from strawberry.types import Info as StrawberryInfo

from app.models import Account

@dataclasses.dataclass(slots=True, kw_only=True)
class Dataloaders:
    account_by_id: DataLoader[str, Account | None]


class BaseContext(TypedDict):
    request: Request
    response: Response
    background_tasks: BackgroundTasks
    loaders: Dataloaders

We'll also create a function to initialize a new set of dataloaders for each request.

from typing import TypedDict

from fastapi import BackgroundTasks, Request, Response
from strawberry.dataloader import DataLoader
from strawberry.types import Info as StrawberryInfo

from app.models import Account
from app.dataloaders import load_account_by_id


@dataclasses.dataclass(slots=True, kw_only=True)
class Dataloaders:
    account_by_id: DataLoader[str, Account | None]


class BaseContext(TypedDict):
    request: Request
    response: Response
    background_tasks: BackgroundTasks
    loaders: Dataloaders


def create_dataloaders() -> Dataloaders:
    return Dataloaders(
        account_by_id=DataLoader(
            load_fn=load_account_by_id,  # type: ignore[arg-type]
        ),
    )

Now, we need to declare a custom GraphQL context getter that calls this intialization function.

from typing import Annotated

from fastapi import BackgroundTasks, Request, Response
from strawberry.fastapi import GraphQLRouter

from .context import create_dataloaders, Context
from .schema import schema


async def get_context(
    request: Request,
    response: Response,
    background_tasks: BackgroundTasks,
) -> Context:
    return Context(
        request=request,
        response=response,
        background_tasks=background_tasks,
        loaders=create_dataloaders(),
    )


def create_graphql_router() -> GraphQLRouter:
    return GraphQLRouter(
        schema=schema,
        context_getter=get_context,
        graphql_ide="graphiql",
    )

Now, we can mount the GraphQL router (with the specified context getter) onto our FastAPI application.

✅ Benefits

❌ Limitations

Iteration 2- Dependency providers to create dataloaders per request

We can implement dataloading in a better way, by creating dependency providers that create dataloaders per request.

from strawberry.dataloader import DataLoader

from app.accounts.repositories import AccountRepo

from .models import Account


async def create_account_by_id_dataloader(
    account_repo: AccountRepo,
) -> DataLoader[str, Account | None]:
    """Create a dataloader to load accounts by their IDs."""
    async def load_fn(account_ids: list[str]) -> list[Account | None]:
        """Load multiple entities by their keys."""
        id_to_account_map = {
            account.id: account
            for account in await account_repo.get_many_by_ids(account_ids)
        }
        return [id_to_account_map.get(account_id) for account_id in account_ids]
    return Dataloader(load_fn=load_fn)

Next, we need to add this dependency provider to our Aioinject container.

import aioinject
from app.dependencies import create_account_by_id_dataloader

container = aioinject.Container()
container.register(aioinject.Scoped(create_account_by_id_dataloader))

We also need to create a custom context class, like we did in the previous iteration.

from typing import TypedDict

from fastapi import BackgroundTasks, Request, Response
from strawberry.dataloader import DataLoader
from strawberry.types import Info as StrawberryInfo

from app.models import Account


@dataclasses.dataclass(slots=True, kw_only=True)
class Dataloaders:
    account_by_id: DataLoader[str, Account | None]


class BaseContext(TypedDict):
    request: Request
    response: Response
    background_tasks: BackgroundTasks
    loaders: Dataloaders

But this time, we create another dependency provider that creates the dataloaders per request for us.

from strawberry.dataloader import DataLoader

from app.accounts.repositories import AccountRepo
from app.context import Dataloaders

from .models import Account


async def create_account_by_id_dataloader(
    account_repo: AccountRepo,
) -> DataLoader[str, Account | None]:
    """Create a dataloader to load accounts by their IDs."""
    async def load_fn(account_ids: list[str]) -> list[Account | None]:
        """Load multiple entities by their keys."""
        id_to_account_map = {
            account.id: account
            for account in await account_repo.get_many_by_ids(account_ids)
        }
        return [id_to_account_map.get(account_id) for account_id in account_ids]
    return Dataloader(load_fn=load_fn)

def create_dataloaders(
    account_by_id: DataLoader[str, Account | None],
) -> Dataloaders:
    """Create dataloaders for the current context."""
    return Dataloaders(
        account_by_id=account_by_id,
    )

We need to add this to the container too.

import aioinject
from app.dependencies import create_account_by_id_dataloader, create_dataloaders

container = aioinject.Container()
container.register(aioinject.Scoped(create_account_by_id_dataloader))
container.register(aioinject.Scoped(create_dataloaders))

We can plug the dataloaders into the request context in the following way:

from typing import Annotated

from aioinject import Injected
from aioinject.ext.fastapi import inject
from fastapi import BackgroundTasks, Request, Response
from strawberry.fastapi import GraphQLRouter

from .context import Context
from .dataloaders import Dataloaders
from .schema import schema


@inject
async def get_context(
    request: Request,
    response: Response,
    background_tasks: BackgroundTasks,
    dataloaders: Injected[Dataloaders],
) -> BaseContext:
    """Get the context for the GraphQL request."""
    return Context(
        request=request,
        response=response,
        background_tasks=background_tasks,
        loaders=dataloaders,
    )


def create_graphql_router() -> GraphQLRouter:
    """Create a GraphQL router."""
    return GraphQLRouter(
        schema=schema,
        context_getter=get_context,
        graphql_ide="graphiql",
    )

Now, this GraphQL router can be mounted onto your FastAPI application.

✅ Benefits

❌ Limitations

Iteration 3- Introduce type aliases for data loaders

Let us address the limitations in the previous iteration using type aliases, a new feature added since Python 3.11.

We can create type aliases for data loader dependency providers like follows:

from strawberry.dataloader import DataLoader

from app.accounts.repositories import AccountRepo
from app.context import Dataloaders

from .models import Account

type AccountByIdLoader = DataLoader[str, Account | None]

async def create_account_by_id_dataloader(
    account_repo: AccountRepo,
) -> AccountByIdLoader:
    """Create a dataloader to load accounts by their IDs."""
    async def load_fn(account_ids: list[str]) -> list[Account | None]:
        """Load multiple entities by their keys."""
        id_to_account_map = {
            account.id: account
            for account in await account_repo.get_many_by_ids(account_ids)
        }
        return [id_to_account_map.get(account_id) for account_id in account_ids]
    return Dataloader(load_fn=load_fn)

def create_dataloaders(
    account_by_id: AccountByIdLoader,
) -> Dataloaders:
    """Create dataloaders for the current context."""
    return Dataloaders(
        account_by_id=account_by_id,
    )

The use of type aliases provides an unique return type annotation for every dependency provider function, which plays nicely with the Aioinject dependency injection system.

The remaining steps are similar to the previous iteration.

We register the dependency providers in the Aioinject container:

import aioinject
from app.dependencies import create_account_by_id_dataloader, create_dataloaders

container = aioinject.Container()
container.register(aioinject.Scoped(create_account_by_id_dataloader))
container.register(aioinject.Scoped(create_dataloaders))

We can plug the dataloaders into the request context in the following way:

from typing import Annotated

from aioinject import Injected
from aioinject.ext.fastapi import inject
from fastapi import BackgroundTasks, Request, Response
from strawberry.fastapi import GraphQLRouter

from .context import Context
from .dataloaders import Dataloaders
from .schema import schema


@inject
async def get_context(
    request: Request,
    response: Response,
    background_tasks: BackgroundTasks,
    dataloaders: Injected[Dataloaders],
) -> BaseContext:
    """Get the context for the GraphQL request."""
    return Context(
        request=request,
        response=response,
        background_tasks=background_tasks,
        loaders=dataloaders,
    )


def create_graphql_router() -> GraphQLRouter:
    """Create a GraphQL router."""
    return GraphQLRouter(
        schema=schema,
        context_getter=get_context,
        graphql_ide="graphiql",
    )

Now, this GraphQL router can be mounted onto your FastAPI application.

✅ Benefits

❌ Limitations

Bonus- Transforming dataloader keys

In certain cases, you might want to transform the data loader keys before passing them to the data fetching function. You might want to convert your keys to an integer type, or an ObjectId (When you are using MongoDB).

Moving the key transformation logic inside your dataloaders can prevent you from defining the same redundant transformation logic in multiple places outside the loaders.

We can implement dataloader key transforms before data loading like this:

Integer Key Transformations

from strawberry.dataloader import DataLoader

from app.accounts.repositories import AccountRepo

from .models import Account

type AccountByIdLoader = DataLoader[str, Account | None]

def is_valid_integer(value: str) -> bool:
    try:
        int(value)
        return True
    except ValueError:
        return False

async def create_account_by_id_dataloader(
    account_repo: AccountRepo,
) -> AccountByIdLoader:
    """Create a dataloader to load accounts by their IDs."""
    async def load_fn(account_ids: list[str]) -> list[Account | None]:
        """Load multiple entities by their keys."""
        # transform keys here
        valid_keys = [int(key) if is_valid_integer(key) for key in account_ids]
        id_to_account_map = {
            account.id: account
            for account in await account_repo.get_many_by_ids(valid_keys)
        }
        return [id_to_account_map.get(int(account_id))) for account_id in account_ids if is_valid_integer(account_id) else None]
    return Dataloader(load_fn=load_fn)

ObjectId Key Transformations

from bson import ObjectId
from strawberry.dataloader import DataLoader

from app.accounts.repositories import AccountRepo

from .models import Account

type AccountByIdLoader = DataLoader[str, Account | None]

async def create_account_by_id_dataloader(
    account_repo: AccountRepo,
) -> AccountByIdLoader:
    """Create a dataloader to load accounts by their IDs."""
    async def load_fn(account_ids: list[str]) -> list[Account | None]:
        """Load multiple entities by their keys."""
        # transform keys here
        valid_keys = [ObjectId(key) if ObjectId.is_valid(key) for key in account_ids]
        id_to_account_map = {
            account.id: account
            for account in await account_repo.get_many_by_ids(valid_keys)
        }
        return [id_to_account_map.get(ObjectId(account_id))) for account_id in account_ids if ObjectId.is_valid(account_id) else None]
    return Dataloader(load_fn=load_fn)

Creating a reusable dataloader factory

Writing the same key conversion, data fetching and transformation logic in every dataloader is repetitive. We can make life easier by creating a reusable dataloader factory, which can be used to define all of our dataloaders:


from collections.abc import Awaitable, Callable
from typing import TypeVar

from strawberry.dataloader import DataLoader

T = TypeVar("T")
U = TypeVar(
    "U", str, tuple[str, str]
)  # the original key type (input), assumed to be a string
K = TypeVar(
    "K", str, tuple[str, str]
)


async def load_many_entities(
    keys: list[U],
    data_fetcher: Callable[[list[K]], Awaitable[list[T | None]]],
    key_transform: Callable[[U], K | None],
) -> list[T | None]:
    """
    Load entities by keys (IDs, slugs, etc.).

    :param keys: A list of keys (e.g., IDs or slugs) as strings.
    :param data_fetcher: The repository method to fetch data.
    :param key_transform: Function to transform keys (e.g., convert to int).
    :return: A list of entities matching the keys, preserving the original order.
    """
    # Transform and validate keys
    valid_keys: list[K] = [
        key for key in (key_transform(key) for key in keys) if key is not None
    ]

    # Fetch data using the provided repo method
    fetched_entities = await data_fetcher(valid_keys)

    # Map results back to original keys
    key_to_entity_map = dict(zip(valid_keys, fetched_entities, strict=False))

    # Return entities in the original key order, with None for invalid/missing keys
    return [
        key_to_entity_map.get(transformed_key)
        if (transformed_key := key_transform(key)) is not None
        else None
        for key in keys
    ]



def transform_default(key: str) -> str | None:
    """Return the key as is."""
    return key


def create_dataloader(
    data_fetcher: Callable[[list[K]], Awaitable[list[T | None]]],
    key_transform: Callable[[U], K | None],
) -> DataLoader[U, T | None]:
    async def load_entities(entity_keys: list[U]) -> list[T | None]:
        """Load multiple entities by their keys."""
        return await load_many_entities(
            keys=entity_keys,
            data_fetcher=data_fetcher,
            key_transform=key_transform,
        )

    return DataLoader(load_fn=load_entities)

This dataloader factory function can be used to create multiple dataloaders with custom key transformation functions and data fetchers.

[!NOTE] The data fetcher function must return a list with the exact number of items (or none) as the number of keys that were passed. Otherwise, the data loading mechanism will error.

Here are a few examples:

from bson import ObjectId
from strawberry.dataloader import DataLoader

from app.accounts.repositories import AccountRepo, ProfileRepo
from app.core.dataloaders import (
    create_dataloader,
    transform_default
)

from .documents import Account, Profile

def transform_valid_object_id(key: str) -> ObjectId | None:
    """Check if a string is a valid ObjectId."""
    return ObjectId(key) if ObjectId.is_valid(key) else None


type AccountByIdLoader = DataLoader[str, Account | None]


async def create_account_by_id_dataloader(
    account_repo: AccountRepo,
) -> AccountByIdLoader:
    """Create a dataloader to load accounts by their IDs."""
    return create_dataloader(
        data_fetcher=account_repo.get_many_by_ids,
        key_transform=transform_valid_object_id,
    )


type AccountByUsernameLoader = DataLoader[str, Account | None]


async def create_account_by_username_dataloader(
    account_repo: AccountRepo,
) -> AccountByUsernameLoader:
    """Create a dataloader to load accounts by their usernames."""
    return create_dataloader(
        data_fetcher=account_repo.get_many_by_usernames,
        key_transform=transform_default,
    )

type ProfileByIdLoader = DataLoader[str, Profile | None]


async def create_profile_by_id_dataloader(
    profile_repo: ProfileRepo,
) -> ProfileByIdLoader:
    """Create a dataloader to load profiles by their IDs."""
    return create_dataloader(
        data_fetcher=profile_repo.get_many_by_ids,
        key_transform=transform_valid_object_id,
    )

References/ Read more
